Reliable machine monitoring requires information regarding early warning, alarm status as well as local display of measured values and remote connectivity.

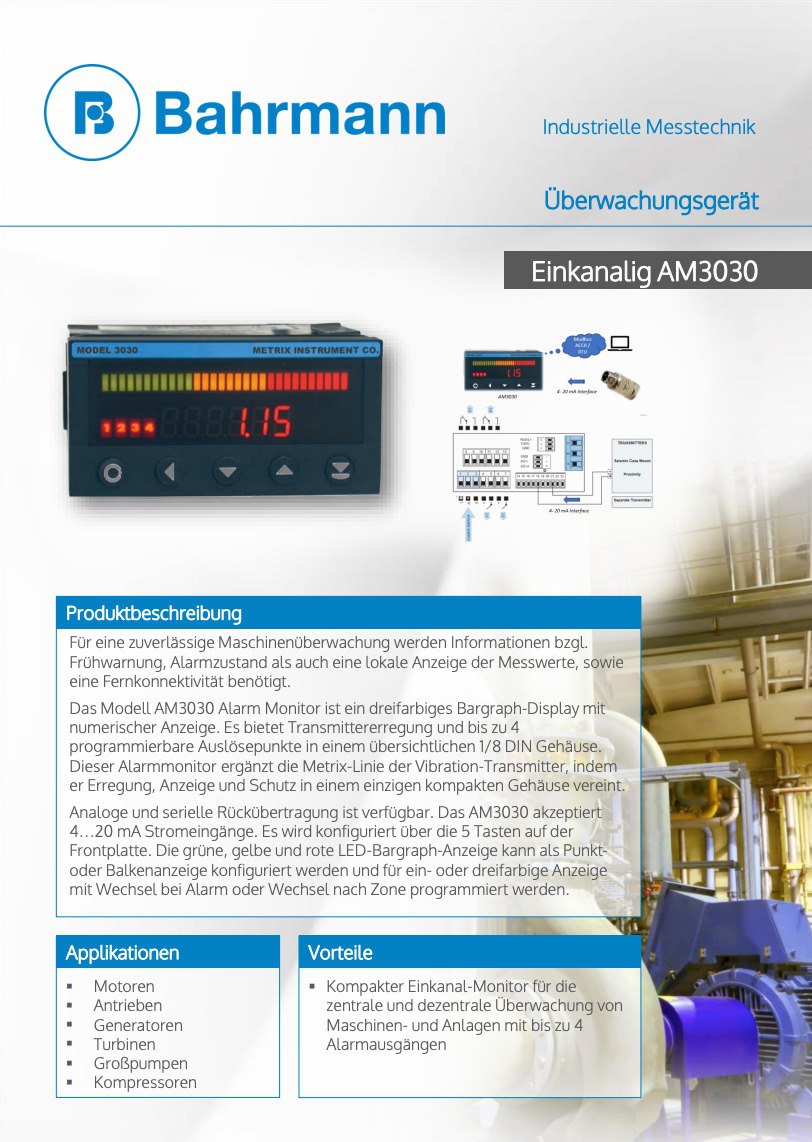

The Model AM3030 Alarm Monitor is a three-color bargraph display with numeric readout. It provides transmitter excitation and up to 4 programmable trip points in a neat 1/8 DIN housing. This alarm monitor complements the Metrix line of vibration transmitters by combining excitation, display and protection in a single compact enclosure.

Analog and serial feedback is available. The AM3030 accepts 4...20 mA current inputs. It is configured using the 5 buttons on the front panel. The green, yellow and red LED bargraph display can be configured as a dot or bar graph display and can be programmed for single or tri-color display with change on alarm or change by zone.

Benefits:

• Compact single-channel monitor for centralized and decentralized monitoring of machines and plants with up to 4 alarm outputs

• 4...20 mA monitor for centralized or decentralized monitoring (e.g. Metrix transmitter)

• analog and Modbus outputs for central monitoring

• max. 4 adjustable switching thresholds with relay outputs

• Highly visible LED color display for numerical measured value, bar graph display, as well as alarms

• Versions in 24VDC or 230VAC.

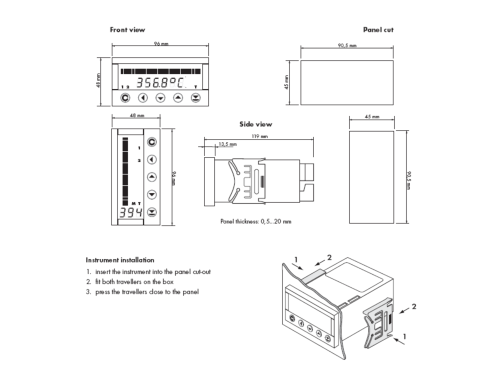

• Easy cabinet mounting (1/8 DIN rail)

• Motors

• Drives

• Generators

• Turbines

• Large pumps

• Compressors
