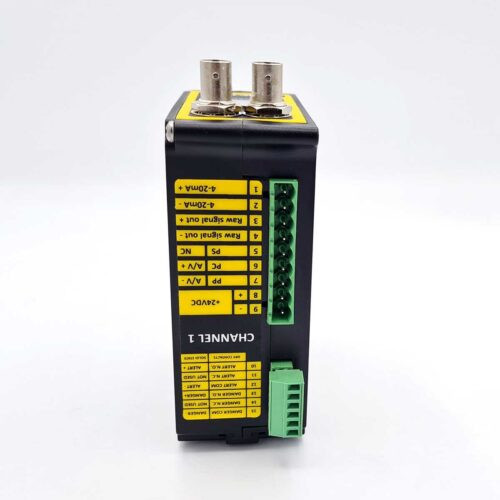

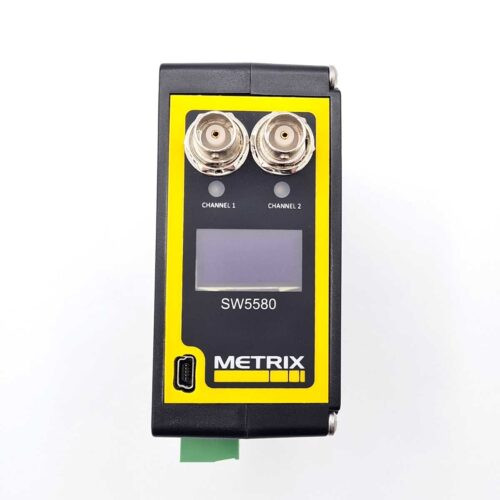

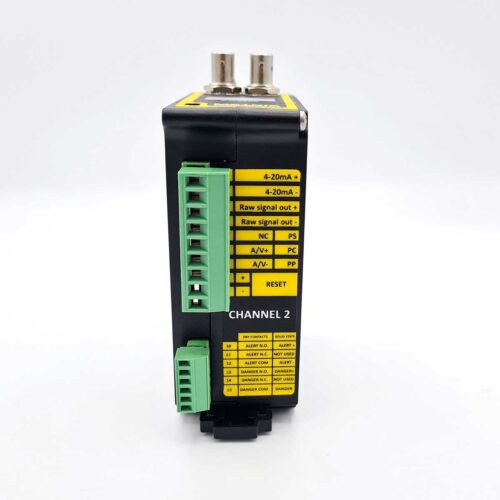

The 5580 is a configurable signal conditioner with monitor function for cost-effective continuous machine monitoring.

It is designed to receive signals from seismic velocity sensors, accelerometers, or eddy current sensors (proximity) and generates a 4...20 mA output signal proportional to the measured variable.

To complement the 5580, the SW5580 includes solid-state contacts (SPST) or optional floating relay contacts (SPDT).

Benefits:

• Compact, configurable signal evaluator for decentralized machine monitoring

• Raw signal output available on both sides (BNC)

• 2-channel version with monitor function

• 2 switching outputs (SW5580), relay (SPST) or solid-state (SPDT)

• Connection for seismic sensors: vibration velocity, acceleration

• Connection for eddy current systems (proximity): Vibration, Position, Speed

• Integrator for vibration velocity and displacement

• 4...20mA output, NAMUR standard (Single- / or 'Dual-Path-Mode)

• LCD display  (4...20mA current value and measured value)

• Raw signal/diagnostic output up to 300m

• LED alarm indicator, multicolor  (OK, pre / main alarm)

• Free PC Software

• Easy configurable via mini-USB port: Sensor type, measuring range, filter, switching thresholds applications (impact, rod drop)

• Easy cabinet mounting, DIN rail (35 mm),

• Screw terminal connection

• Various approvals

• Fan

• Drives

• Pumps

• Compressors

• Motors
