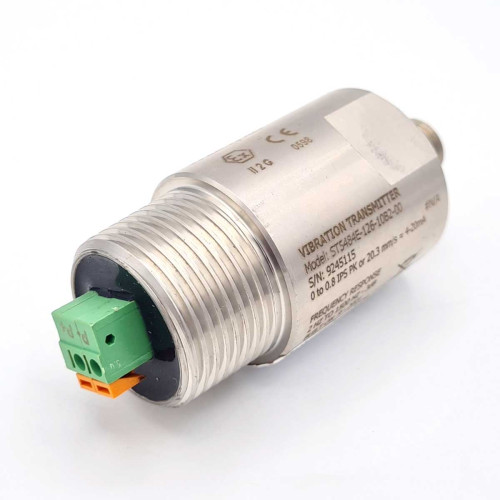

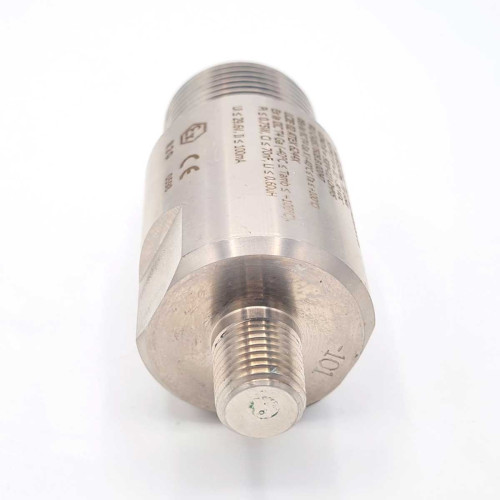

Vibration transmitter ST5484E
Reliable machine monitoring (e.g. housing vibrations caused by imbalances) is ensured by a highly sensitive, low-noise and robust sensor technology. The M8, M10, ¼", ⅜" or ½" screw connections of the sensor allow machine-specific and reliable mounting, which is also possible in hard-to-reach places.
Continuous machine monitoring is performed via the integrated 4 ... 20 mA current interface for central monitoring.
The raw signal output ('Dynamic Signal') is available for 'real-time' evaluations or diagnosis of the vibration signals.
Benefits:
Compact, highly accurate and robust vibration transmitter for machine and plant monitoring
Extensive approvals for use in the EX area
High-precision velocity transmitter (seismic, all motion axes)
4...20 mA output signal (loop powered)
Raw signal output for diagnostics (optional)
Versions with mil-connector, terminal block or open cable ends
Robust and corrosion resistant stainless steel housing (Ex d approval with factory fitted 8200 thermowell for versions with terminal block or open cable ends)
Individual configurations ex works: Measuring range, mounting, housing material, approval, cable connection, band filter
Accessories:

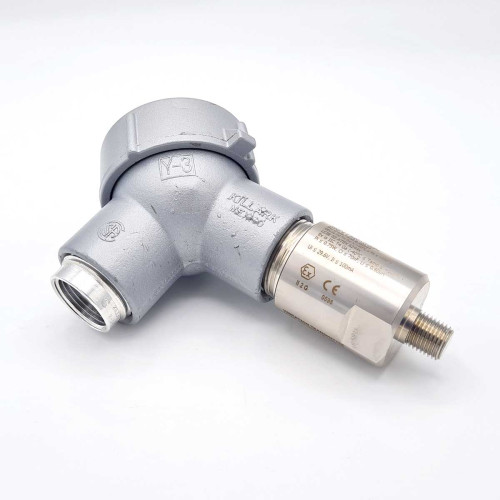

Connecting cables with Mil-plugs, TAGs, mounting adapter, protection tube (8200) and various reducers
Div. approvals
Characteristics | Technical values |
Vibration transducer | Piezo-electric, with signal integrator |
Frequency range (-3dB) | 2 Hz … 1500 Hz 1.) |
Measuring range | 5.0 in/sec (127 mm/s) 2.) |
Humidity (max.) | 95 % 3.) |
High protection class | IP67 3.) |
Housing material | Stainless steel 303; 316 |
Operating temperature range | -40°C … +100°C |
Raw signal output | 100 mV/g (10,2 mV / s 2.) 4.) |
Signal output | 4 …20 mA (loop-powered) |
Voltage | 11,0 VDC … 29,6 VDC |
Accuracy | ±2,5% (in the filter area) |

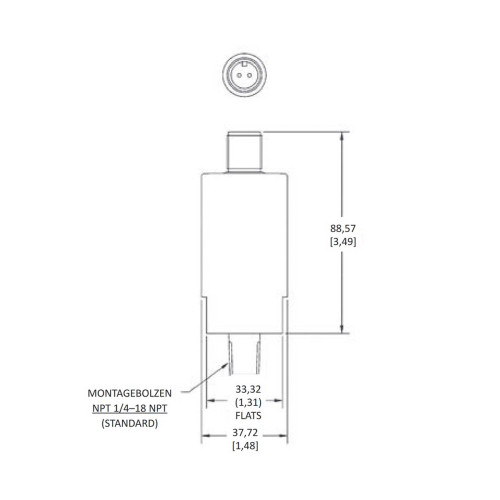

Dimensions | ca. Ø 38 mm, l = 89 mm 3.) |
Weight | ca. 0,36kg |
Characteristic | Technical values |
|---|---|
Measuring range | 1,0 in/Sek (25,4mm) … 3,0 in / Sek (76,2mm) |
Housing material | 303 SS,316 SS |
Bolt size | ¼“ NPT Bolzen ½“ NPT Bolzen 3/8x24 UNF – ½“ Bolzen 1/2x20 UNF – ½“ Bolzen M8x1,0 M10x1,25 |
Connection type | Terminal block 2-pin MIL connector Cable outlet 2 and 4 wire |
