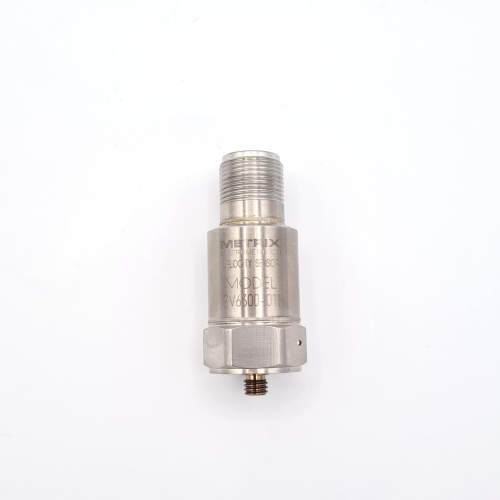

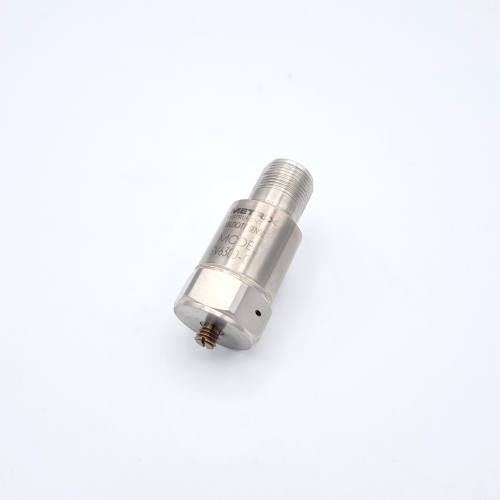

Sensor for vibration velocity SV6300
Reliable machine monitoring (e.g. housing vibrations caused by imbalances) is ensured by temperature-stabilized and robust sensor technology.

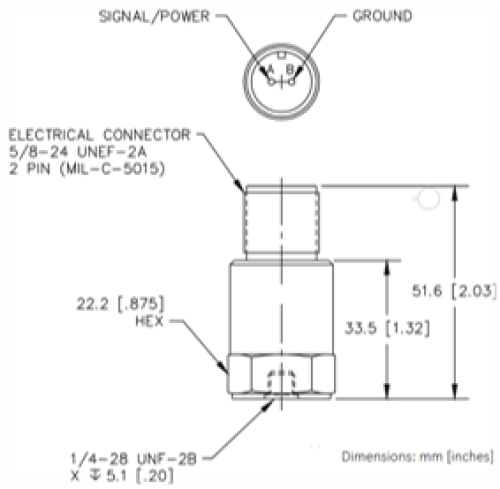

The 1/4-28 UNF or M6 x 1.0 screw connections of the sensor allow machine-specific and reliable mounting, which is also possible in hard-to-reach places.
Continuous machine monitoring is provided via the sensor output (100 mV/ips for centralized or decentralized monitoring (e.g. Metrix Signal Conditioner 5580/SW5580).
Benefits:
Compact and robust vibration velocity sensor for machine and plant monitoring
Extensive mounting options, as well as approvals for use in EX areas
Seismic vibration velocity sensor
Piezo-electric version with integrator
Integrated amplifier for low impedance
Temperature stabilized
Rugged stainless steel construction
Easy wiring with 2-pin mil connector
Mounting studs for different threads Mounting in all axes For many applications and replacement for electro-dynamic sensors
Various approvals
Charakteristics | Technical values |
|---|---|
Accelerometer | Piezo-electric, constant current standard |
Frequency range (-3dB) | 2 Hz … 8 kHz |
Sensitivity | 100 mV/g (3,94 mV/mm/s) |
Resonant frequency | 20 kHz |
Cross-axis sensitivity | < 5% |
Accuracy | 2% |
Housing insulation | 108 Ω |
Shock (max) | 5000 g |
Noise | 0,003 g rms |
Voltage | 18,0 … 28,0 VDC |
Housing material | Edelstahl 316 |
Temperature range (operation) | -54°C ...+121°C |
Protection class | IP68 |
Characteristic | Technical values |
|---|---|
Zertifizierung für Gefahrenzonen | CSA / ATEX / IECEX EN nA / IECEX EN ia |
Fans / Cooling towers
Drives
Large pumps
Compressors
Motors
