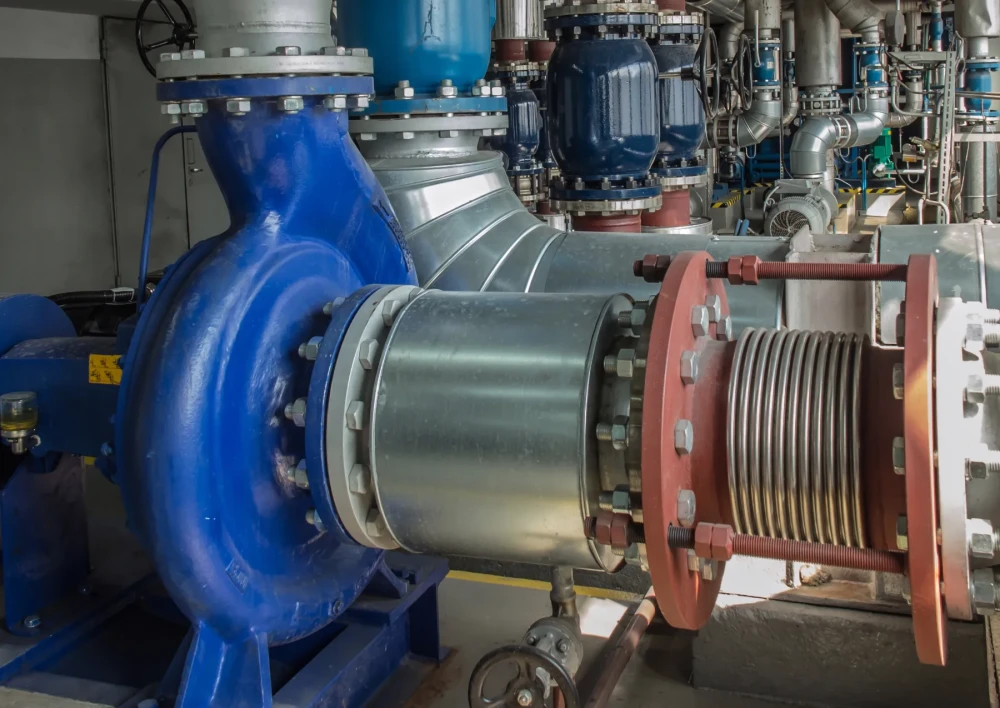

Vibration monitoring of radial compressors

Monitoring of shaft vibration, axial position, speed, as well as housing vibrations.

High measuring accuracy, even with constricted sensor mounting ('Cross-Talk' feature improves crosstalk with constricted mounting of eddy current sensors).

Possible causes of failure

  • Unbalance

  • Misalignment

  • Material fatigue

  • Disign deviation

  • insufficient or improper lubrication

  • seal failure

  • Foreign matter

Technical features

Rotary machine with several compression stages

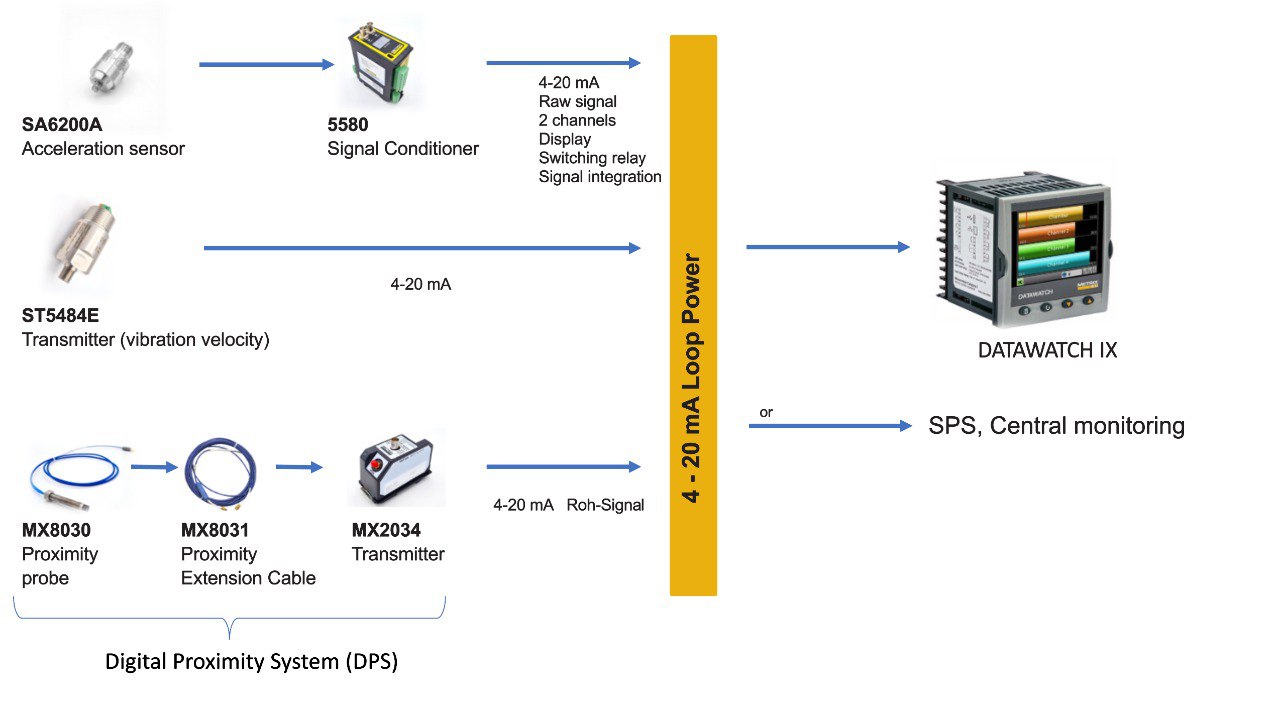

Products

a) Accelerometer SA6200A + Signal Conditioner 5580/SW5580 ( 4-20mA, switching outputs, raw signal output, display) - for measuring the enclosure vibrations
b) Transmitter ST5484E (4-20mA, raw signal) - for measuring the housing vibrations
c) Proximity Transmitter MX2034 (4-20mA, raw signal) + Proximity Probe MX8030 8mm, Triaxial, Vibelock) + Extension Cable MX8031 (Triaxial, Vibelock) - for measurement of axial thrust and radial bearing

Approvals

API 670, CSA US/C, ATEX, IECEx, EAC, KOSHA, PESO, SIL, CE

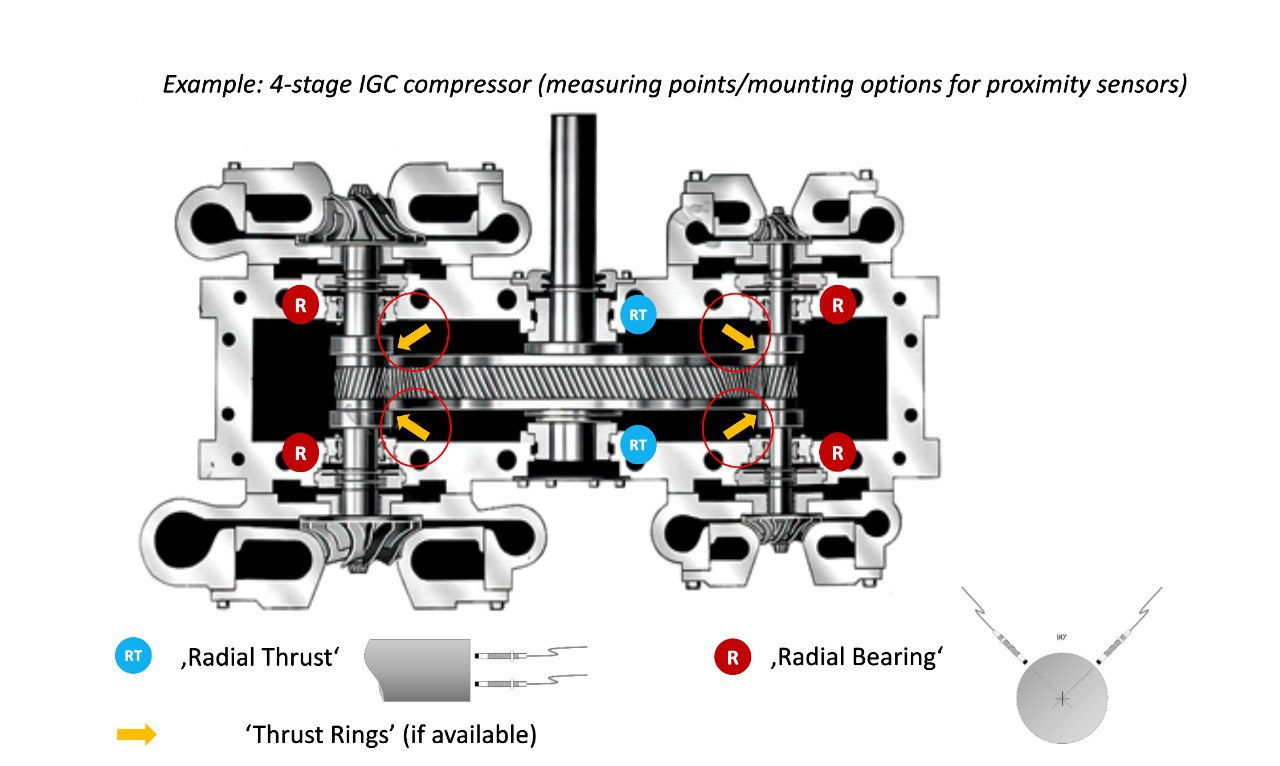

Mounting options
