Vibration monitoring of horizontal pumps (centrifugal pumps)

  • Seismic vibration measurement and machine protection

  • Monitoring of motor, gearbox or bearing monitoring, if necessary with EX approval

Possible causes of failure

  • Faults after overload

  • Hydraulic failures (e.g. cavity formation, pressure pulsation)

  • Mechanical faults (e.g. bearing and seal defects, material fractures)

  • Corrosion

Technical features

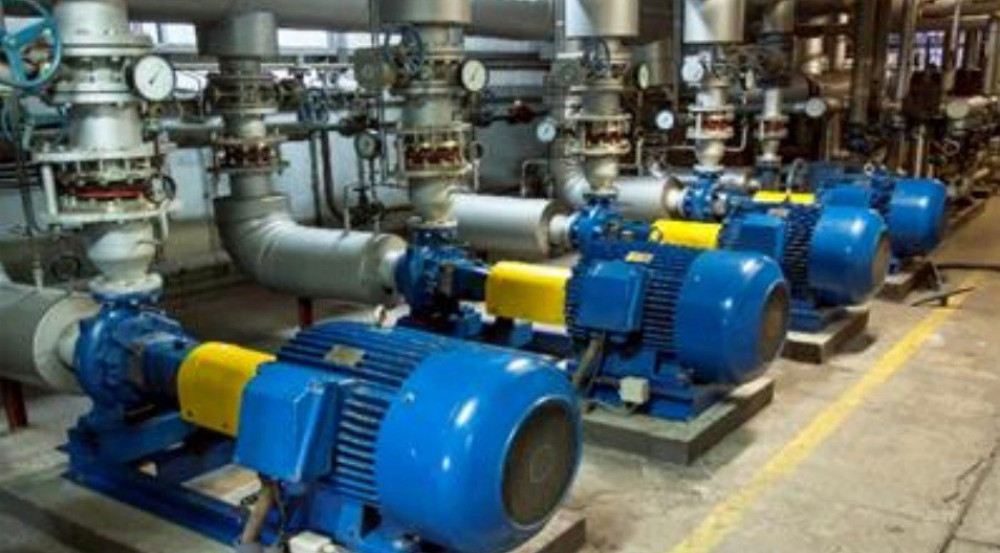

Centrifugal pumps are pump systems used to transport liquids by converting rotational kinetic energy into hydrodynamic energy of the liquid flow.

The energy supply (rotational energy) is usually from an electric motor or steam turbine.

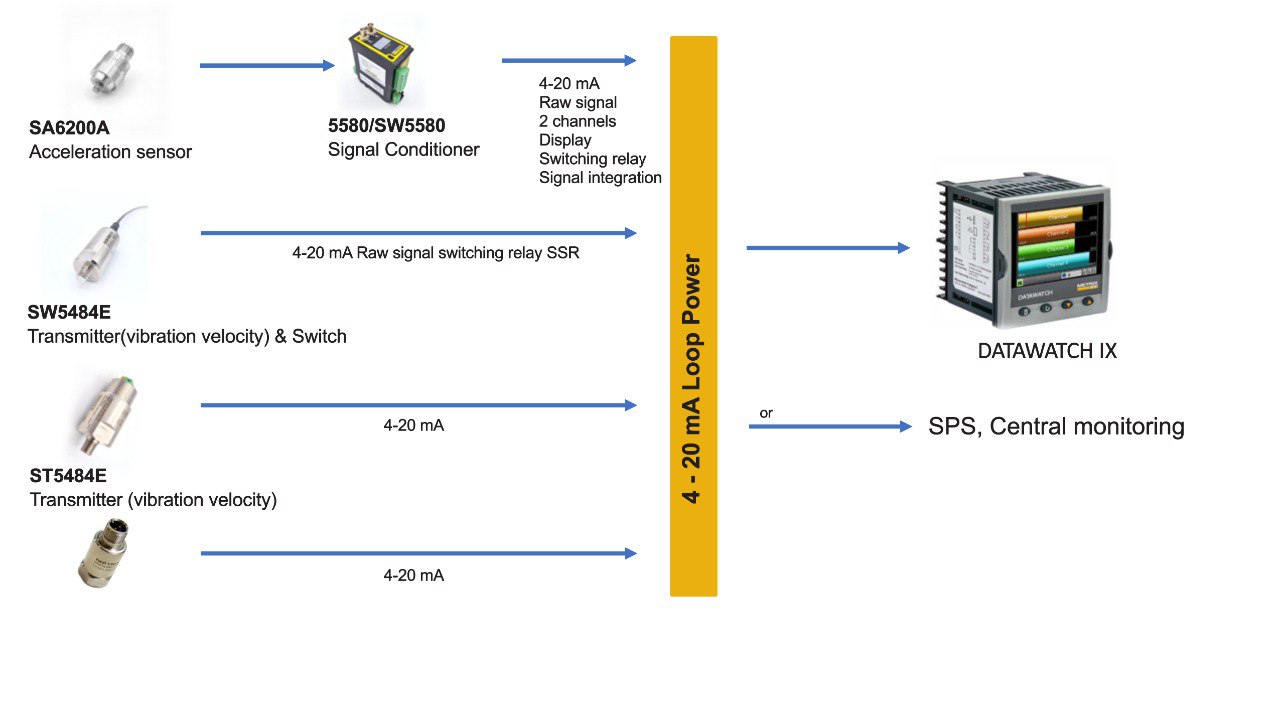

Products

a) Accelerometer SA6200A + Signal Conditioner 5580 (4-20mA, switching outputs, raw signal output, display)
b) Electr. vibration switch, compact with integrated transmitter SW5484E (4 - 20mA, configurable switching outputs, raw signal output)
c) Transmitter ST5484E (4-20mA, raw signal)

Approvals

CSA US/C, ATEX, IECEx, INMETRO, EAC, CCC, KOSHA, NEPSI, PESO, ECAS SIL, CE

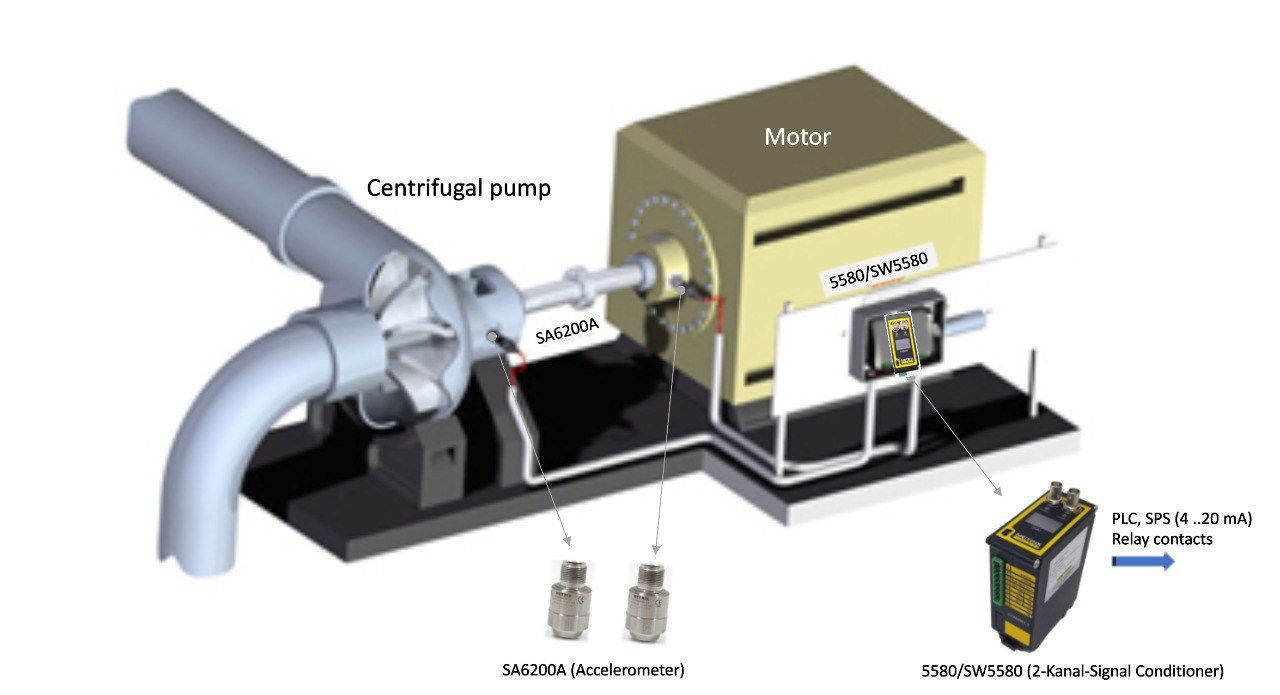

Mounting options
