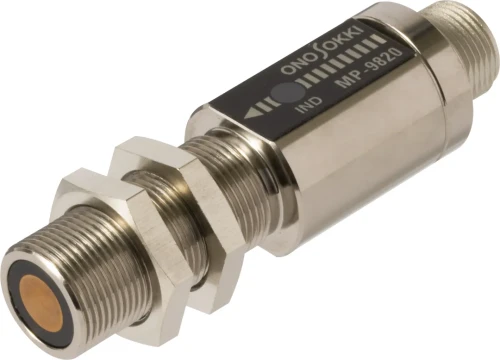

Vibration transducer MP-981 MP-9820
Contactless mounted, magnetic-electric sensors are used to precisely measure the speed at gear rims / gearboxes.
Benefits:
Compact magneto-electric Hall sensor for non-contact speed measurement on gearboxes or gear rims in a wide speed range
Compact and lightweight Hall sensor for magneto-electric speed detection.
Ideal for Ono Sokki digital tachometers of the TM-3100 series
Wide measuring range from 1 Hz to 100 kHz (MP-9820)
Easy function test with integrated LED signal indicator
Individual mounting options with M6x1 screw connection
Robust connector plug (R04-R6M)
Characteristics | Technical values |
|---|---|
Measuring principle | Hall element (electro-magnetic) |
Material recognition | Strong magnetic Tooth width ≥ 3mm |
Frequency range | 1 Hz …20 kHz (MP-981) 1 Hz …100 kHz (MP-9820) |
Speed range | 1 bis 100.000 U/min bei 60P/R-gear |
Impedance (output) | ca. 330 Ω |
Modul | 0,5 bis 3,0 |
Power supply | 12V ± 2V, ca. 40 mA |
Temperature range | -10°C ...70°C |
Weight | 0,110 kg |
Characteristic | Technical values |
|---|---|
Water/acid proof | not provided (AP-981), provided (MP-981) |
Measurements on
Rotating machines
Vehicles
Production plants
