Handheld tachometer contact HT-3200
Mobile speed measuring devices are used for sporadic speed measurement on a rotating shaft.
For contact measurement, direct mechanical contact to the contact tip of the measuring device is required.
Benefits:
Speed measurement, as well as measurement of the circumferential speed of a device
Delivery takes place in a robust plastic box
Robust and handy hand-held tachometer for measuring rotational and circumferential speed
Contact tip and circumferential ring in the instrument compartment
For mobile, battery-powered use
Simple, intuitive operation with automatic shut-off
Highly visible 5-digit LCD display with 10.5 mm line height
Integrated memory function of the measurement result
Incl. robust plastic box and batteries
Characteristics | Technical values |
|---|---|
Contact transducer | Contact tip (2x) Circumferential ring (1x) |
Display | LCD (5 digits) |
Battery | 3 x AAA (1,5V) |
measuring ranges | Speed 0.5 ... 10,000 rpm Peripheral speed 0.05 ... 1,000 m/min |
Accuracy
| (0,5 …1.249,9 rpm) ±0,1 rpm (1.250 …2.000 rpm) ±0,2 rpm (5,0 …10.000 rpm) ±0,1 rpm |
Memory | for 10 measuring values |
Automatic shutdown | after approx. 30 s |
Temperature range (operation) | ca. 0,3kg (MX2033 / MX2034) |

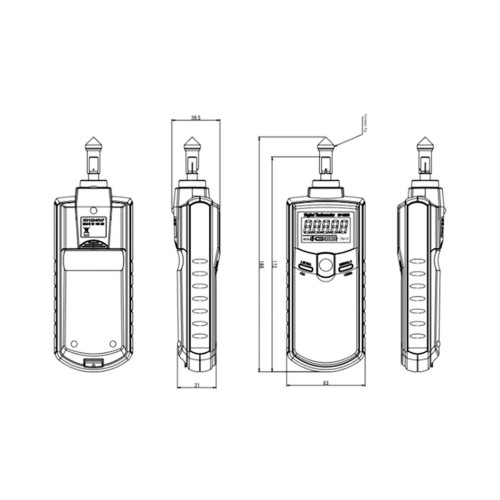

Dimensions | 63 (B) x 172 (L) x 38,5 (D) mm |
Weight | ca. 0.360 kg |
